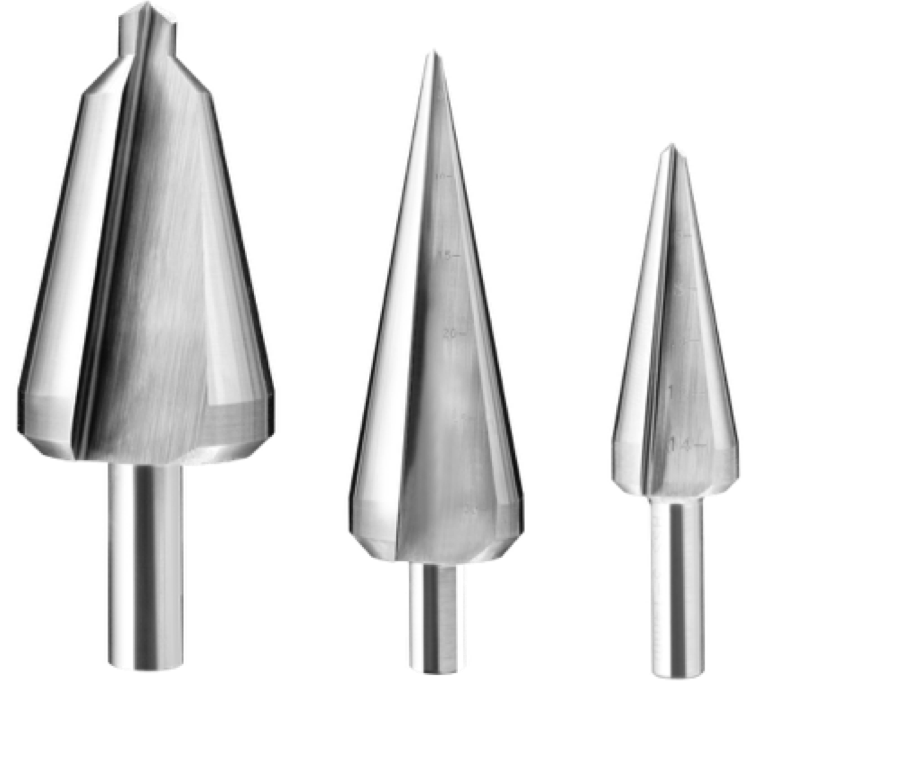

HSS / HSS-Co Tube and Sheet drills

· Burr free and vibration free drilling

· No centring required, the drills do not run off centre

· Reboring existing holes

· Designed to drill : sheet metal, pipes and profiles of steel, plexiglas, plastic

· A variety of hole diameters (up to 60mm) can be drilled using only one tool

Drilling Range Length Handle Ф Article No.
3-14mm 58mm 6mm 2003140AGR 2003140ATR 2003140ALR 2003140AGT 2003140ATT 2003140ALT 2003140BGR 2003140BTR 2003140BLR 2003140BGT 2003140BTT 2003140BLT
6-20mm 63mm 8mm 2006200AGR 2006200ATR 2006200ALR 2006200AGT 2006200ATT 2006200ALT 2006200BGR 2006200BTR 2006200BLR 2006200BGT 2006200BTT 2006200BLT
5-20mm 75mm 8mm 2005200AGR 2005200ATR 2005200ALR 2005200AGT 2005200ATT 2005200ALT 2005200BGR 2005200BTR 2005200BLR 2005200BGT 2005200BTT 2005200BLT
8-20mm 68mm 8mm 2008200AGR 2008200ATR 2008200ALR 2008200AGT 2008200ATT 2008200ALT 2008200BGR 2008200BTR 2008200BLR 2008200BGT 2008200BTT 2008200BLT
3-22.5mm 85mm 8mm 2003225AGR 2003225ATR 2003225ALR 2003225AGT 2003225ATT 2003225ALT 2003225BGR 2003225BTR 2003225BLR 2003225BGT 2003225BTT 2003225BLT
5-24.5mm 87mm 10mm 2005245AGR 2005245ATR 2005245ALR 2005245AGT 2005245ATT 2005245ALT 2005245BGR 2005245BTR 2005245BLR 2005245BGT 2005245BTT 2005245BLT
16-30.5mm 79mm 9mm 2016305AGR 2016305ATR 2016305ALR 2016305AGT 2016305ATT 2016305ALT 2016305BGR 2016305BTR 2016305BLR 2016305BGT 2016305BTT 2016305BLT
26-40mm 86mm 10mm 2002640AGR 2002640ATR 2002640ALR 2002640AGT 2002640ATT 2002640ALT 2002640BGR 2002640BTR 2002640BLR 2002640BGT 2002640BTT 2002640BLT
    ...
Please click to download PDF for more product information.
